Description

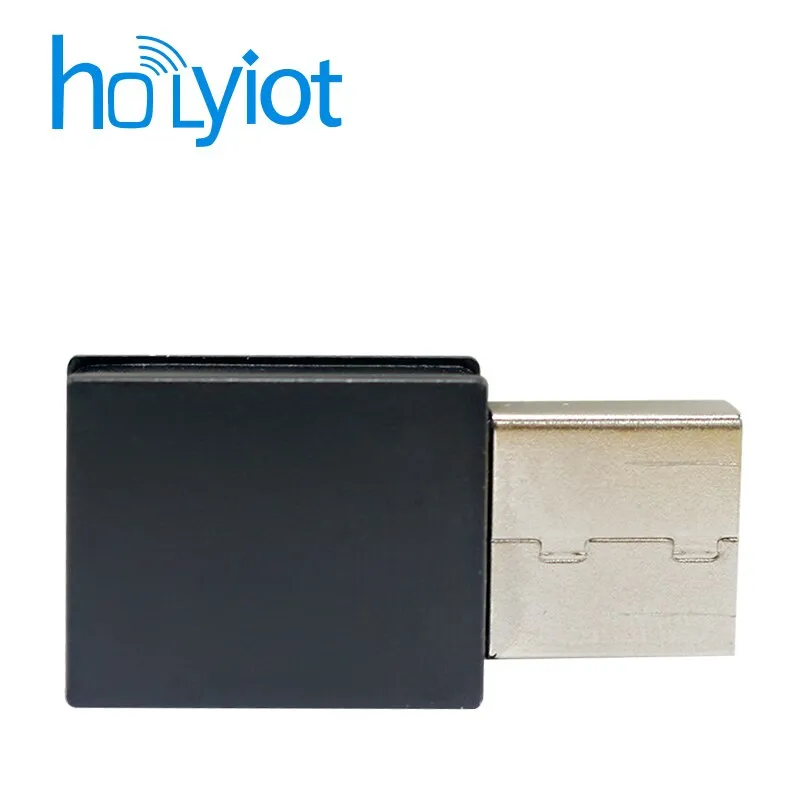

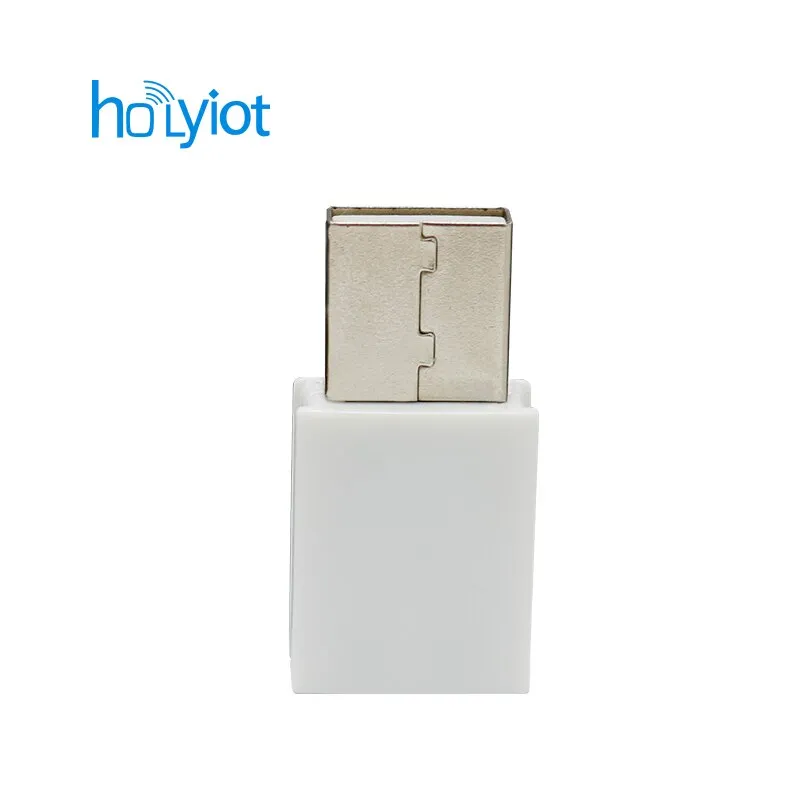

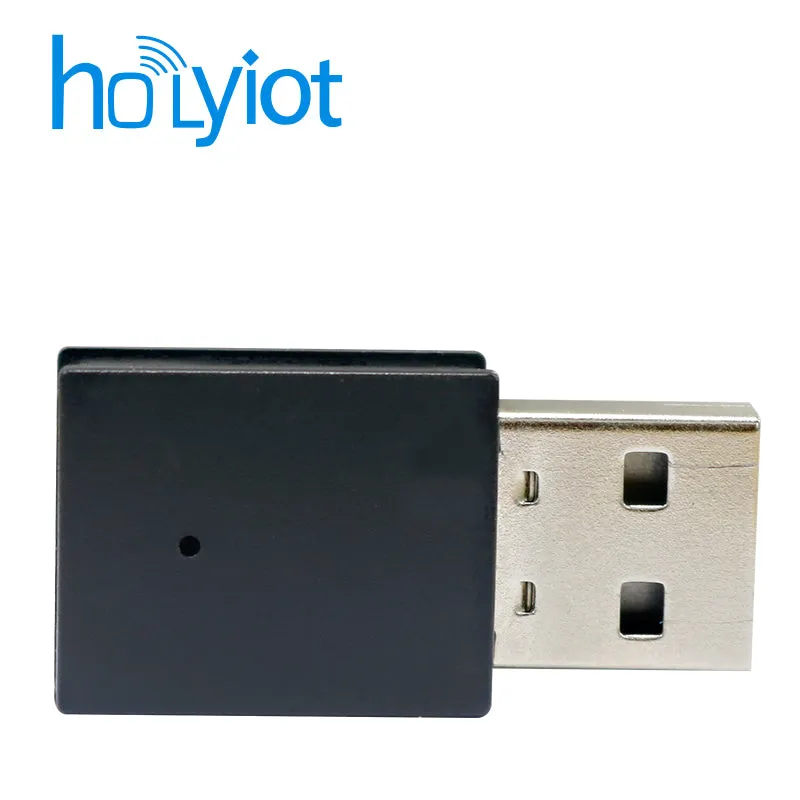

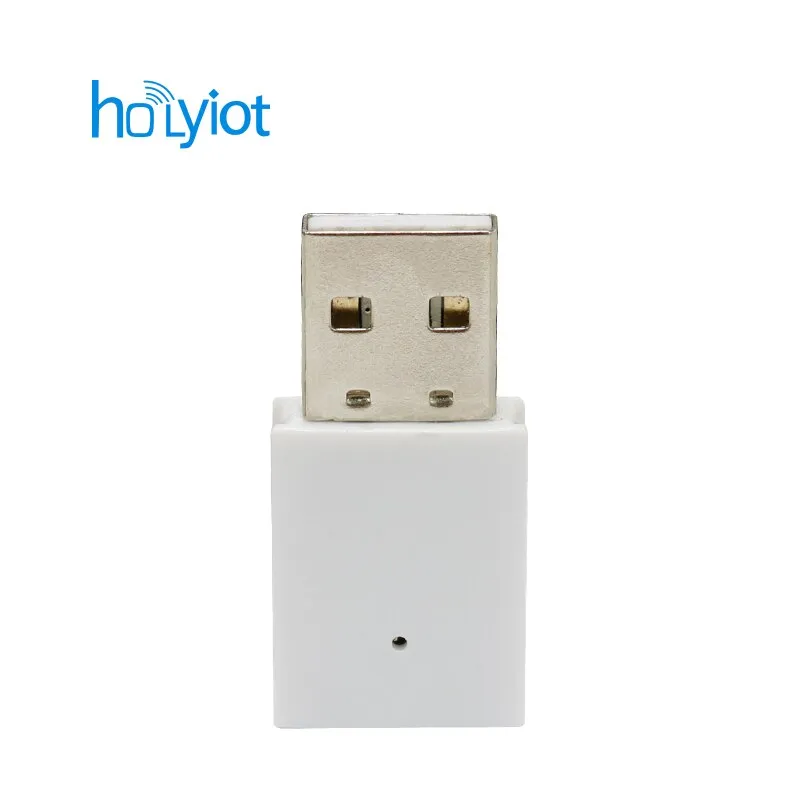

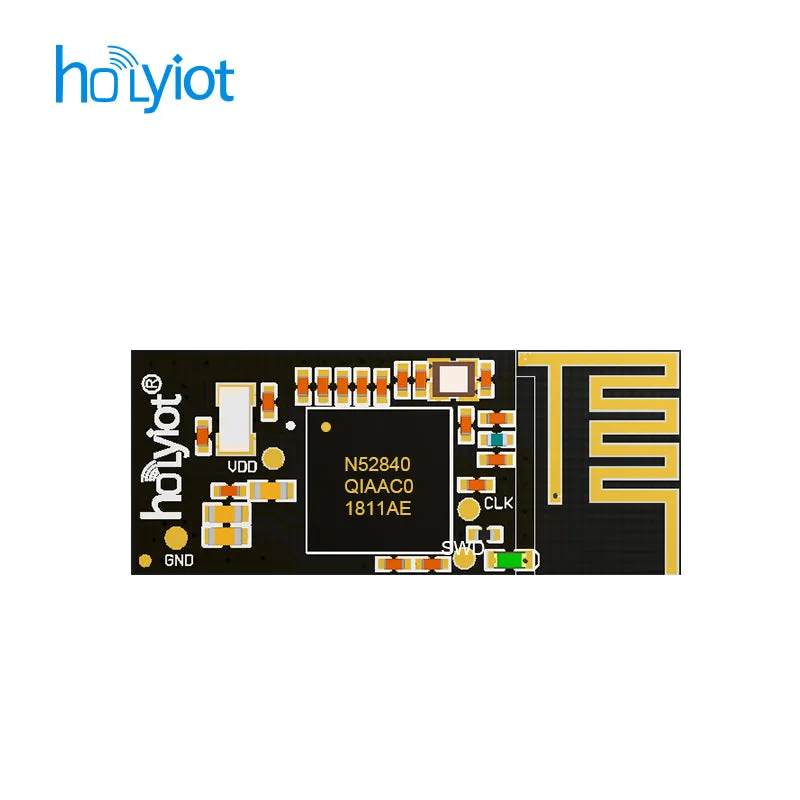

Holyiot-17120 BLE dongle module is based on Nordic nRF52840 Soc, the nRF52840 is designed around an ARM Cortex-M4 CPU with floating Point unit (FPU) and has 1MB flash with cache and 256kB RAM. As such it has the ability to support complex and demanding applications as a single chip solution. It offers a wealth of peripherals that include NFC, USB and multiple interface options including Quad SPI (QSPI). Security is paramount in today's IoT designs and the nRF52840 has high-end security features included to achieve best in clas security with an ARM CryptoCEll cryptographic system on chip and a full AES 128-bit encryption suite. it also support BLE mesh

Full Bluetooth 5 support for long range

Processing power and flash flexibility

Multiprotocol radio

Power Efficiency

Specification:

 Bluetooth 5 ready multi-protocol radio

- 2Mbps

- Long range

- Advertising extensions

- Improved coexistence (CSA #2)

IEEE 802.15.4 radio support

- Thread

- Zigbee

 32-bit ARM Cortex-M4F @ 64MHz

 Up to 111 dB link budget for Bluetooth long range mode

 Full-speed 12Mbs USB controller

 NFC Tag-A

 Software stacks available as downloads

 Programmable output power from 8dBm to -20dBm

 On-air compatible with nRF51, nRF24L and nRF24AP Series

 High-precision RSSI

128 bit AES/ECB/CCM/AAR co-processor

 Single-ended antenna output (on-chip balun)

 Software stacks available as downloads

 Application development independent of protocol stack

 Wide supply voltage range 1.7V to 5.5V

 QSPI/SPI/2-wire/I²S/PDM/QDEC

 Programmable Peripheral Interface - PPI

 High speed SPI interface 32MHz

 Quad SPI interface 32MHz

 EasyDMA for all digital interfaces

 RAM mapped FIFO using EasyDMA

 12bit/200K SPS ADC

 On-chip DC-DC buck converter

 Quadrature demodulator

 -96dBm Sensitivity for Bluetooth low energy

 Arm CryptoCell CC310 crytographic security module

 QSPI/SPI/2-wire/I²S/PDM/QDEC

Application:

 Internet of Things (IoT)

 SmartHome sensors

 Computer peripherals

 A4WP ‘Rezence’ wireless charging

 Sports and fitness sensors and hubs

 Smart watches

 Interactive games

 Wearables

 Connected white goods

 Voice-command smart remotes

 Beacons

 Connected health products

 RC Toys

 Building automation and sensor networks

​
